Over 250 customers use Gtools software to design LGP dots , The  software is No.1 of market share !

 Design LGP dots by Gtools STA software , It’s to learn very easily and powerful function , Gtools support many manufacturing process of dots produce …

(Gtools STA 2018 是最簡單使用但卻功能強大的導光板網點設計專用軟體,您不須擁有AutoCAD基礎即可執行光學微結構的分佈設計,初學者可以在 5 分鐘內設計出您的第一個作品,從光學設計,改版,局部品味微調等超強功能,超乎您的想像,可完整應用在 TFT 背光網點,鍵盤類的發光設計,廣告類的導光裝置,直下式LED遮罩網點設計...等等)

1. Stand alone ( Non AutoCAD based)

2. Easy and fast  tools for LGP pattern design

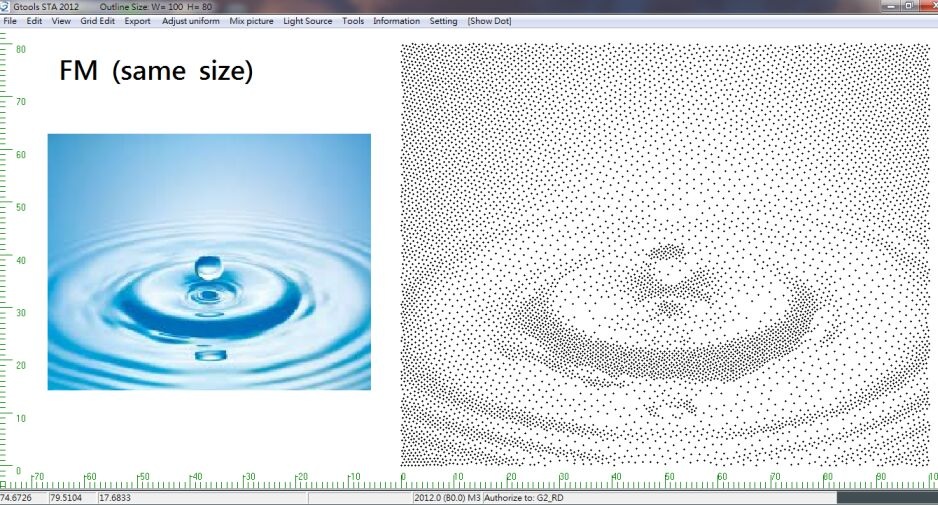

3. Full  layout  mode : same size or change size (FM/AM)

4. Support many dots shape and dot distribution.

5. Output format  : .dxf / gerber / .bmp / .tif / .jpg / X&Y coordinate /.ai / .pdf

6. Reverse file (dxf/bmp/ txt)  to LGP density value

7. Powerful editing function

8. Version record and compared

9. By history data to estimate new LGP brightness value

    visit : https://www.youtube.com/watch?v=Lpnu7ifp4OI

10. Auto adjust  hot-spot area by CCD-picture

11. Auto adjust the uniform by measurement luminance and estimated luminance of new LGP

12. Load  dxf / bmp  file for design reference (or update data)

13. Draw entities and expor to a .dxf file

14. Support  level-depth of laser dots

15. Support optics software simulation format

      (exp:OptisWorks,SPEOS,LightTools,TracePro,Specter)

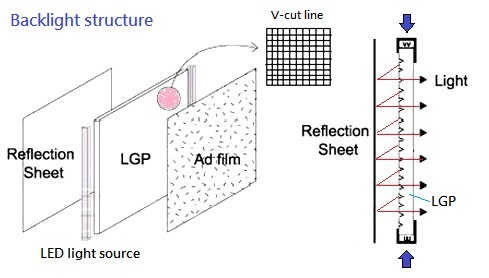

16. Support  V-cut line design (light guide line)

     visit:  http://www.youtube.com/watch?v=xCeray9RkNM

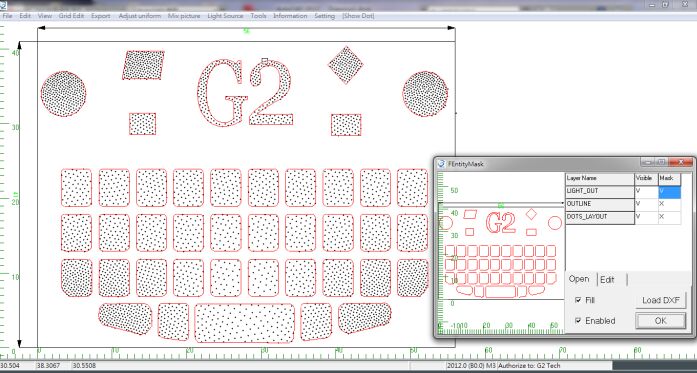

17. Lighted keypad dots or special profile dots design.

17-1: KeyPads design demo:     http://www.youtube.com/watch?v=roAu7GgqAnI

17-2. Lighting LGP  demo   :       http://www.youtube.com/watch?v=A4TYKOLmA74

                                                   http://www.youtube.com/watch?v=JFMXte7kz6E

17-3. irregular shape of LGP : https://www.youtube.com/watch?v=k72dwPwY0Is

18. Full support  LGP manufacture type , exp.  printing , etching , laser stamper , fly

        cut , Co2_laser , Inkjet , engraving ...etc

19. About product market , TFT LGP , KeyPads , lighting , LGF , advertisement  ,light box LGP , LED panel , direct backlit of TV ... etc

20. Easy learning:

20-1. online command help for operation and preview  dots position layout

20-2. Beginners can use the database to produce the first edition

21. international version language : English / Chinese (繁體 / 簡體中文)

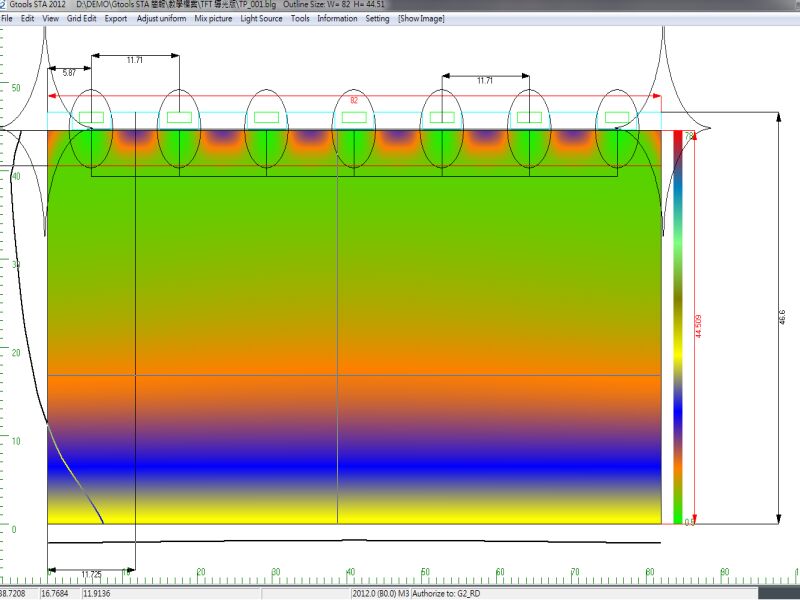

►Product demo  (TFT backlight LGP design)   :

www.youtube.com/watch?v=bwHY-HrG-RA

v.youku.com/v_show/id_XMzA3MzQzMTI0.html

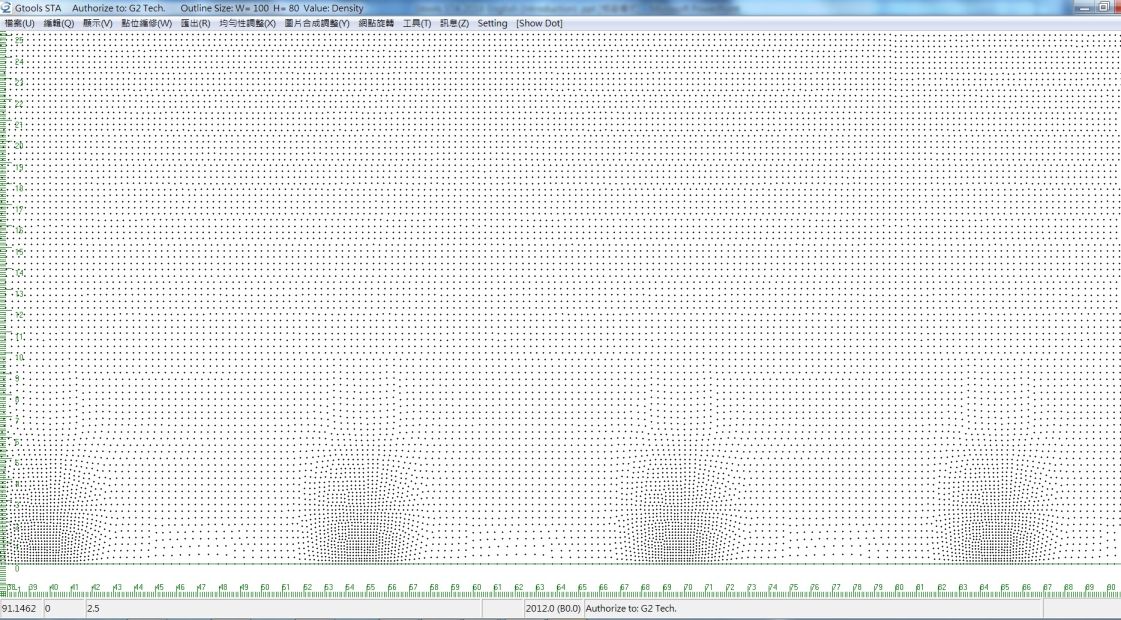

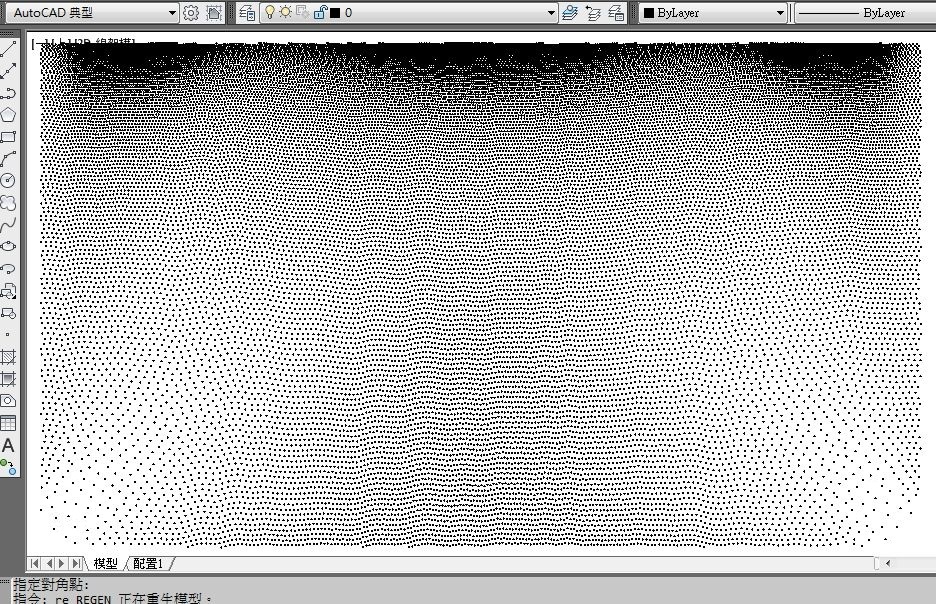

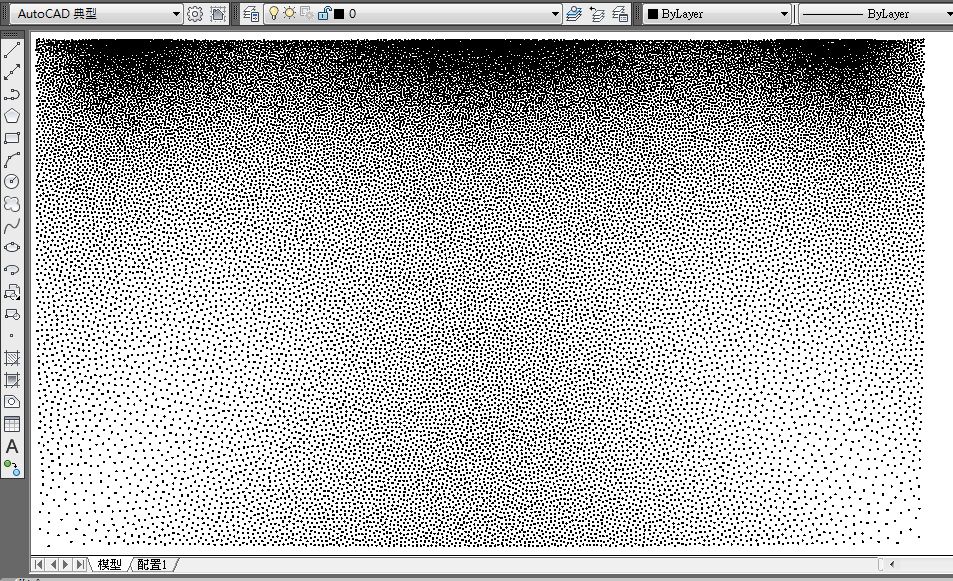

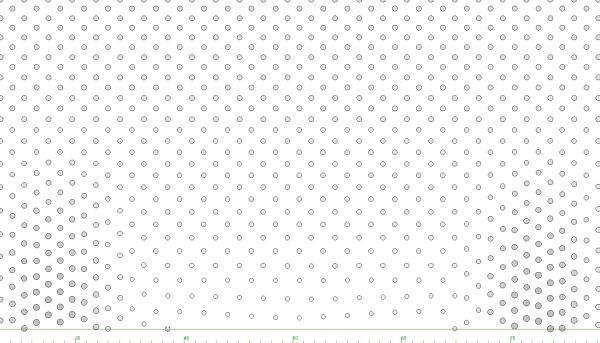

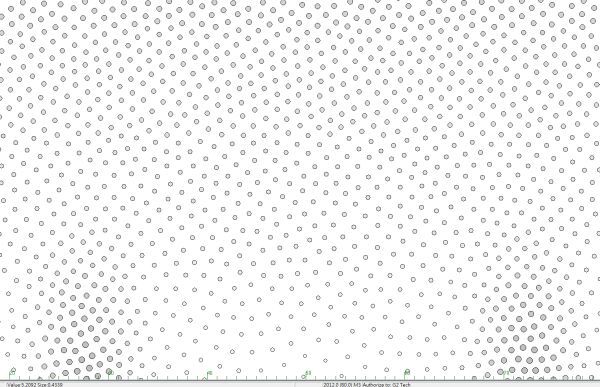

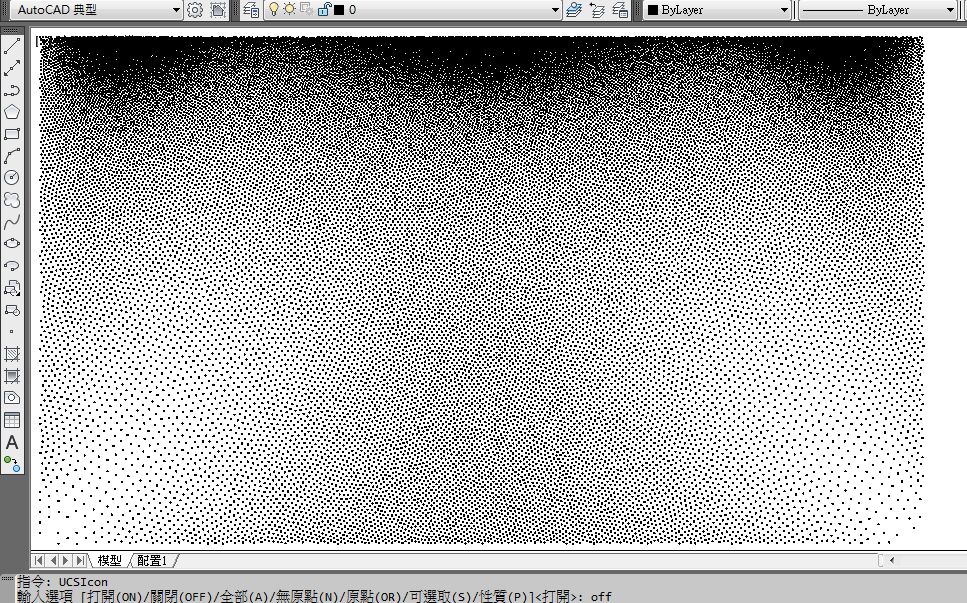

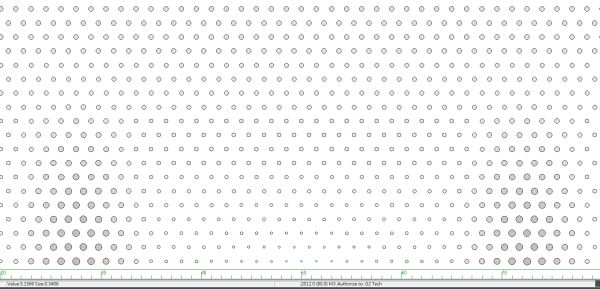

►View LGP dot  picture:   AM1    AM2     AM3   FM1  FM2  FM3  FM4

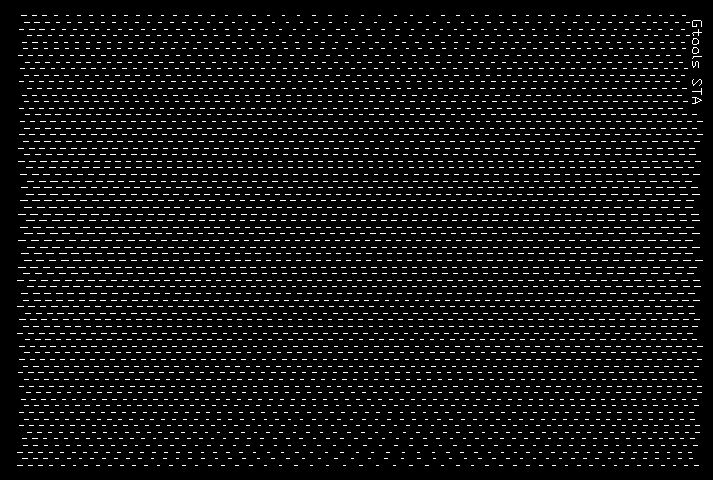

                                                         InkJet LGP   Co2_laser LGP   Image_dot  Light Box (V-cut)

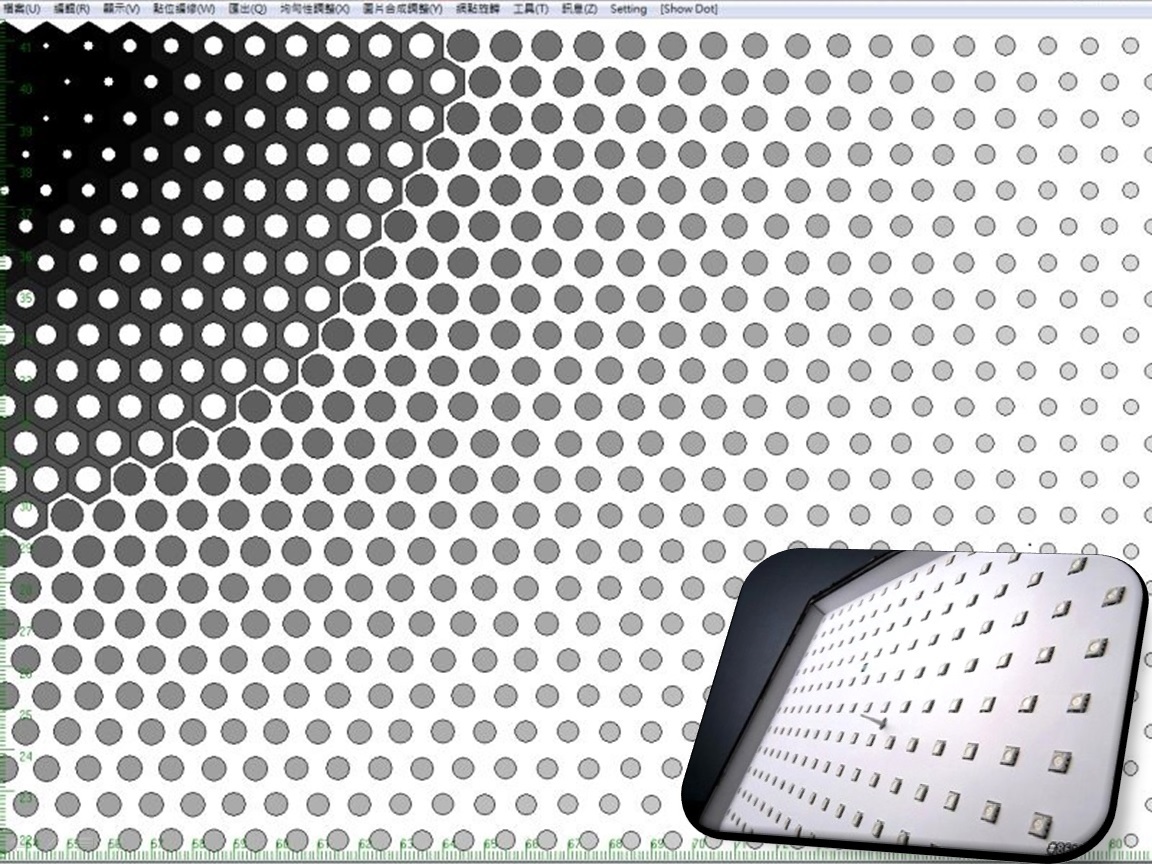

                                           KeyPads Dots   TV_diffusion_plate (Direct-type BLU)
