Gtools Capillary Space CHK
貨號 : G2CSC

zoom+

zoom+

zoom+

zoom+

zoom+


在 IC 封裝製程領域中,模擬 KnS 焊線機台打線時,焊線頭是否會與鄰近的 wires 干涉(撞線)且模擬 Capillary 拉線時,線與線是否會干涉(如:低弧跨越高弧)!Simulate capillary of KnS wire bonder machine , When bonding processing ,The capillary will interfere with neighboring wires or wire will inteinterfere with neig




Present :   On-line Demo  ( Youtube )

                   On-line Demo ( YouKu  )



1. 本軟體可以開啟 BD 圖 (.dwg), 且直接讀取 KnS OLP 定義的焊線順序

    Open BD .dwg and read   bond wire-order data by defined KnS OLP.

2. 顯示/編輯/建立  焊線順序 (此資料與 OLP 相容)

    Create / Modify / Show  the BD wire-order Number (Wire-Oreder data is compatible KnS OLP )

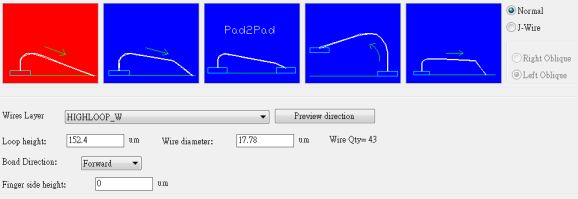

3. 設定各個 Wires Layer 的弧高

     Setting wires loop height & wire shape

4. 設定焊線頭尺寸參數

    Setting capillary size parameters

5. 模擬與分析(Simulate Capillary running) :

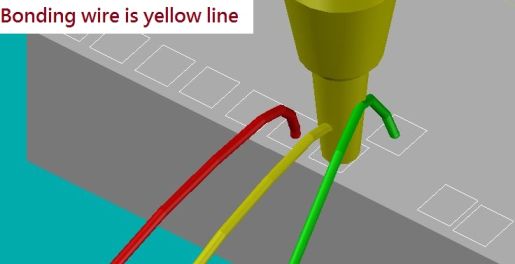

5-1. 焊線頭與 wires 的干涉檢查

       Capillary with wires space checking , as below ...

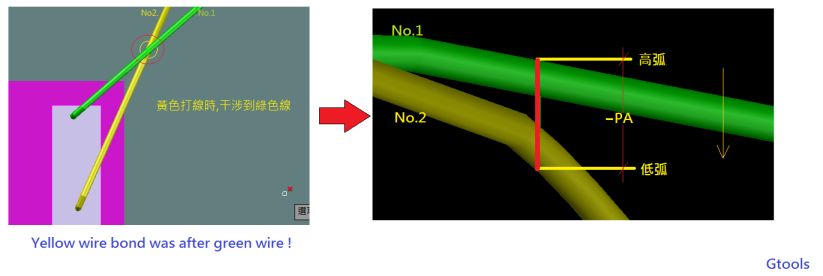

5-2. Wire 低弧跨高弧的干涉 檢查

  Bonding wire with wires space checking , as below...

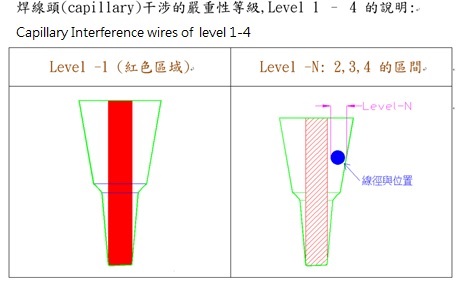

6. 焊線頭干涉可以區分撞擊的嚴重性

    Capillary impact energy with wire (level 1- 4)



7. 可以忽略 2nd 相同 net 的碰撞檢查

    Option for ignore  same net  checking of 2nd bond

8. 一焊點與二焊點的焊線頭尺寸可以不同

     Capillary parameters is different of 1st -bond and 2nd-bond

 9. 可以自訂 3D 弧型

     Support user define the 3D wire  shape

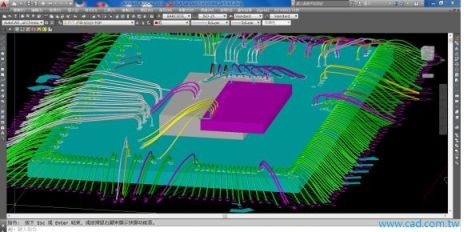

10. 可以產生整體的 3D wire Model

      Create  3D model



11. 編輯焊線順序的工具:

       11-1. Suppot tools for change wire-layer by looping height

                 DEMO : Setting wires looping

       11-2.Support tools for editing wires bonding order (number)

        DEMO : Define Wires Bonding order

12. 可與 Gtools 3D Wires CHK 整合

13. for AutoCAD 2013 (or above ) platform
